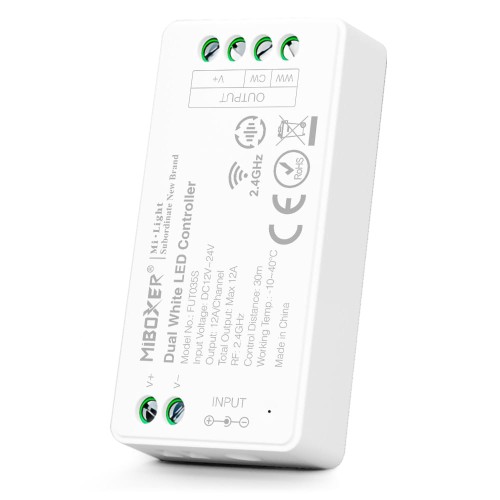

BICOLOR controller 4-zone - Receiver 12A
Description
The radio control system LED strip BICOLOR of current carrying capacity up to 12A. For proper operation of the system is required pilot available HERE. Remote control, you can set different modes of light intensity - controlling your finger on the touch panel get any brightness of the light. It also allows for a smooth change of color temperature.
When you connect a remote control to any number of receivers, we can control the light intensity up to four independent zones LED. Pairing the receiver of the remote control is illustrated in our Video section is available HERE. An assignment circuit to one zone on the remote control: - Turn off the power to the receiver in the first zone to be programmed - Restart the disconnected receiver lighting selected zone and within 3 seconds, press the "I" (ON) on the remote control are chosen by us - If connecting zones will be successful, lights will blink 3 times.
Technical data
The output | 12 - 24V DC |
The method of regulating | remote |
Dimmable | yes |
Signal connector ( output ) | socket terminal |
Controller dimensions | 85 x 45 x 23 [mm] |
Power connection | socket terminal |
Speed control | no |
Way communication with remote control | radio |
Max . current carrying capacity | 12A (2 x 6A) |
