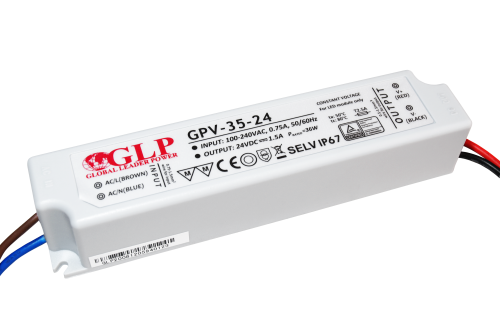

Power supply Global Leader Power GPV watertight 24V 35W

Availability: small quantity
Dispatched within: 24 hours
Price: €17.38 17.38
quantity pc.

product unavailable

add to wish list

Description

The GPV series watertight pulse power supplies by Global Leader Power are proven in many demanding applications.

They feature compact dimensions, low weight and easy installation, with openings for screws and cables.

EMC SAFETY STANDARDS
EN 1347-1, EN 61347-2-13, IP 67
I/O INSULATION STRENGTH: 3 kVAC
I/O insulation resistance :>100 MOhm / 500 VDC / 25~75% RH
Conducted and radiated disturbances — EMI EN 55015
Harmonics EN 61000-3-2,-3
Strength — EMS EN 61547

Technical data

Power [ W ] 36W (1,5A)
Voltage out 90V - 264V
Voltage in 24V
Dimension 148mm x 32mm x 28mm
Class of protection IP IP 67
Protection short circuit,overvoltage
Working temperature -10 C ~ +50 C
Ground NO
